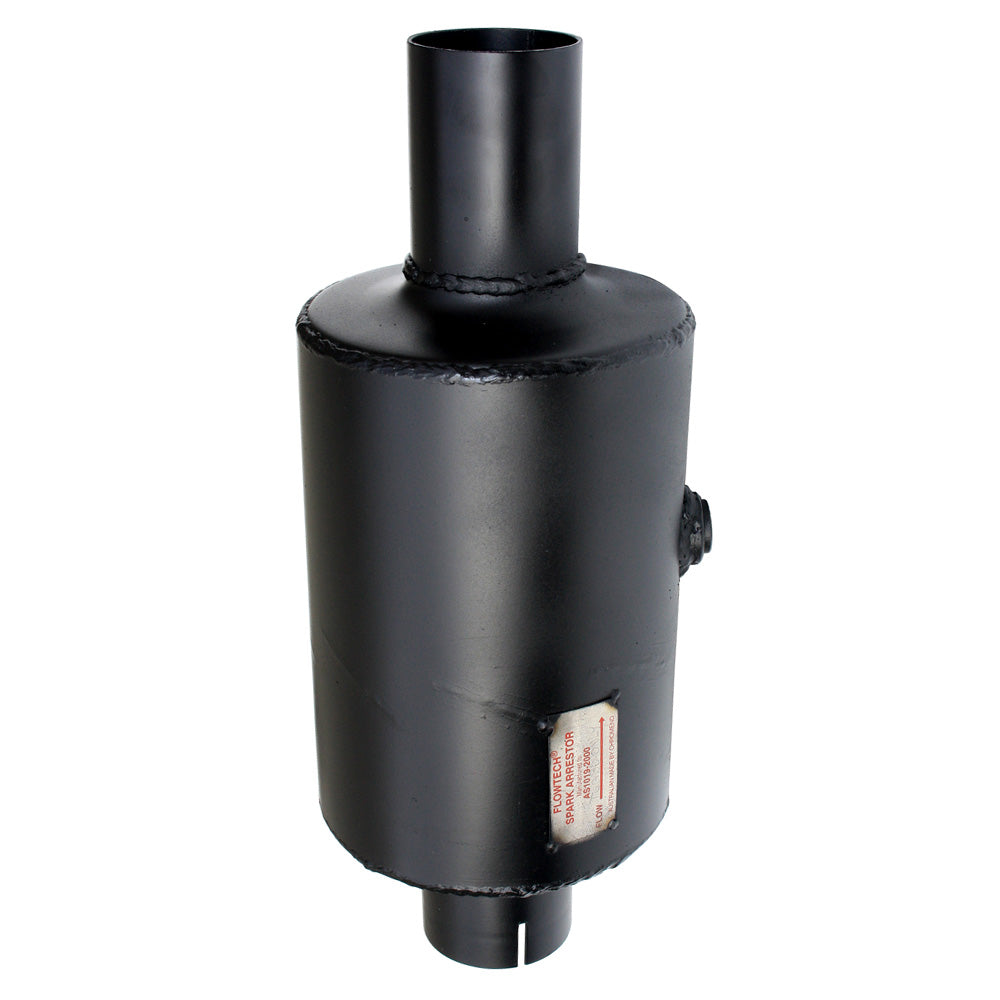

Universal Fan-Type Spark Arrestor
Couldn't load pickup availability
Universal Fan-Type Spark Arrestors – Designed for Turbo Applications
Our fan-type spark arrestors are built specifically for turbocharged engines, providing a compact and reliable solution to reduce fire risk. By preventing sparks and hot particles from escaping the exhaust, these arrestors help protect equipment, operators, and the environment — especially in dry or high fire-risk conditions.
Ideal for use on heavy machinery, generators, agricultural equipment, and other turbo applications, they provide a simple and effective way to meet safety requirements and minimise the risk of wildfires or workplace hazards.
Available in a range of barrel widths, lengths, and inlet/outlet sizes, the universal spark arrestor range is designed for flexibility and ease of installation across different engine types. Durable, efficient, and compliant with safety standards, they are the smart choice for operators who need reliable exhaust safety equipment.
Fan-Type Spark Arrestors (Turbo Applications)
Barrel Diameter: 6” (152 mm)
| Stock Code | Inlet (ID) | Outlet (ID) | Body Length |
|---|---|---|---|
| SA67-200 | 2" (51 mm) | 2" (51 mm) | 7" (178 mm) |
| SA69-250 | 2½" (63 mm) | 2½" (63 mm) | 9" (230 mm) |
Barrel Diameter: 7” (178 mm)
| Stock Code | Inlet (ID) | Outlet (ID) | Body Length |
|---|---|---|---|
| SA711-300 | 3" (76 mm) | 3" (76 mm) | 11" (280 mm) |
| SA712-350 | 3½" (89 mm) | 3½" (89 mm) | 12" (305 mm) |
Barrel Diameter: 9” (230 mm)
| Stock Code | Inlet (ID) | Outlet (ID) | Body Length |
|---|---|---|---|
| SA915-400 | 4" (102 mm) | 4" (102 mm) | 15" (380 mm) |
| SA916-500 | 5" (127 mm) | 5" (127 mm) | 16" (406 mm) |
Barrel Diameter: 12” (305 mm)
| Stock Code | Inlet (ID) | Outlet (ID) | Body Length |
|---|---|---|---|
| SA1222-600 | 6" (152 mm) | 6" (152 mm) | 22" (560 mm) |
