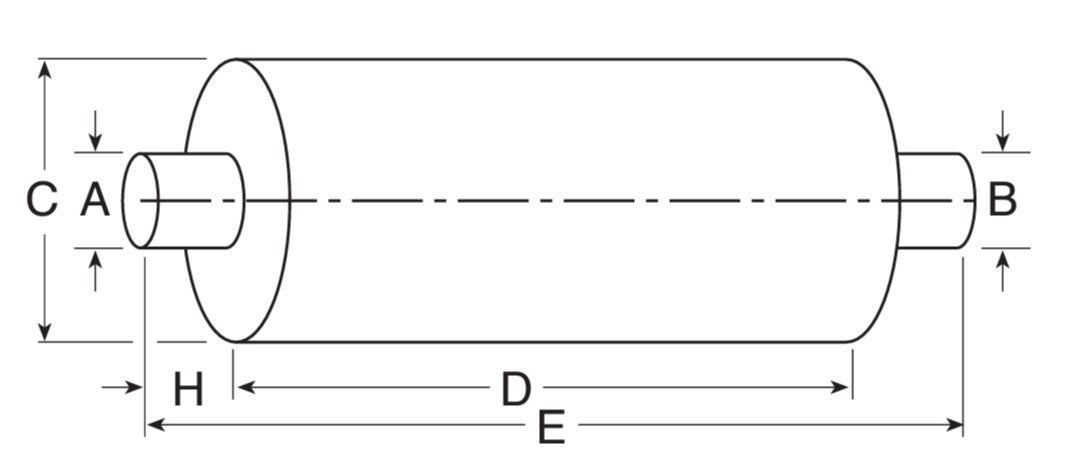

| Inlet ID (A): | 5" (127mm) |
| Outlet ID (B): | 5" (127mm) |
| Barrel Diameter (C): | 10" (254mm) |
| Barrel Length (D): | 44" (1120mm) |
| Overall Length (E): | 51" (1295mm) |
| Inlet Length (H): | 3" (76mm) |
| Positioning: | Centre/Centre |
| Internals: | Semi-Baffled |
| Max Flow (3" Hg): | 2850 CFM |
| Max Flow (2" Hg): | 2400 CFM |
| Application: | Universal |
| OEM Cross References: |
Donaldson: M100465 Ford: 9575M100465 Freightliner: A04116940 International: 2585727C1 Mack: 2ME29301P1, 2ME49301P2 Nelson: 86682M Stemco: 1901107 Volvo: 230013807 Walker: 22920 Western Star: 230013420 White: 49044073 |
Nelson economy mufflers are a more cost effective alternative to the Nelson OEM mufflers, and are suitable for fleet operators. Each features:
- Unpainted aluminised steel construction (1.6mm wall)
- Outlet end of muffler is domed for vertical installation
- Inlet end of muffler is flat, for ease of mounting onto existing brackets
- 1 year manufacturer warranty.
The semi-baffled design is suitable for a wide range of engines, and is a quieter option than straight through mufflers, without being too restrictive - has a good flow rate.
Available in a range of barrel lengths, barrel diameters and inlet/outlet sizes; please contact us with your specific requirements.
Images are for indicative purposes only; may indicate a muffler with different internal configurations.
