Stainless Steel 3" V-Band Clamp 89500K

$83.99

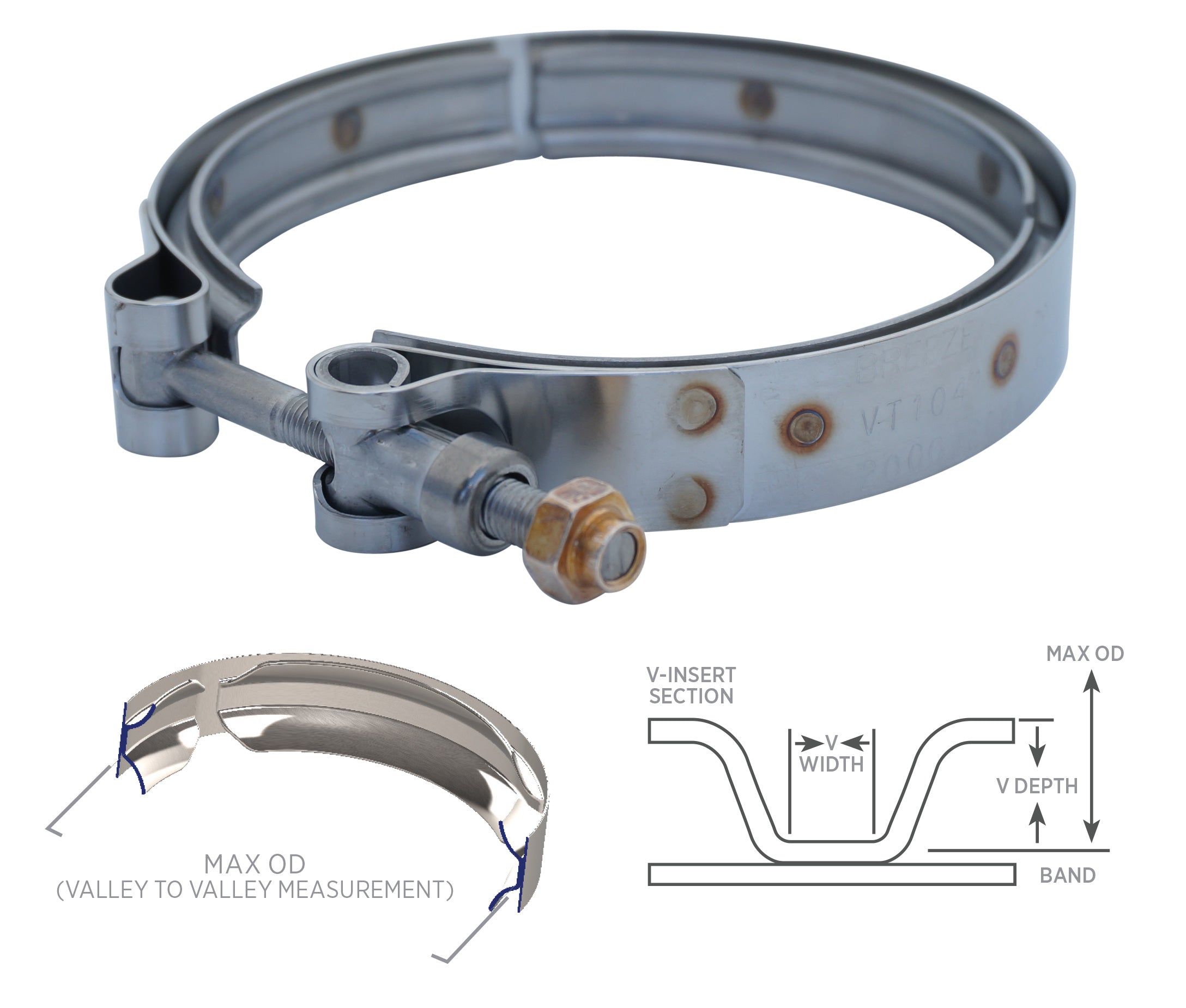

Stainless steel V-band clamp for various machined/lipped flange and rolled/lipped flange applications. Refer to second image for details on how to measure critical dimensions.

  • Typical Application: Cummins V903, Ford 370 & 429.
  • Maximum OD: 3.88" (99mm)
  • Valley Width: 10mm
  • Valley Depth: 7mm
  • Tube Size Guide:
  • OEM: 89500K
  • Cross References: BREEZE VT10388, OEM: Cummins 183670, V555, V903, V902. Volvo Y559206. RG Ray 10028-1, 10190, Ford D9HZ-5A231J, D9HT-5C210-DA, Med Duty 370, 429. Aftermarket: AP 9612 or 9610. Clamps, INC VBC-3880. Donaldson J009612 or J009610. Dynaflex 41-300-S or 41-300-1S/ Ex Air, Big Rig 88-316. Heavy Duty 21-213. Nelson 89500K or 90527K. Riker UV301 or UV 251. Stemco 250-0930 or 250-0005 or 250-0018. Walker 35690 or 35401. Shuttlerworth 320001 or 320082.
