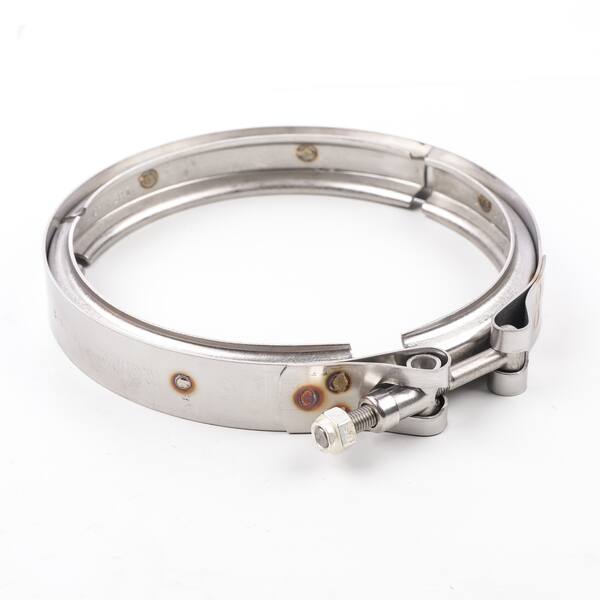

Stainless Steel 3½" (89mm) V-Band Clamp 89508K

SKU: 89508K
$135.99

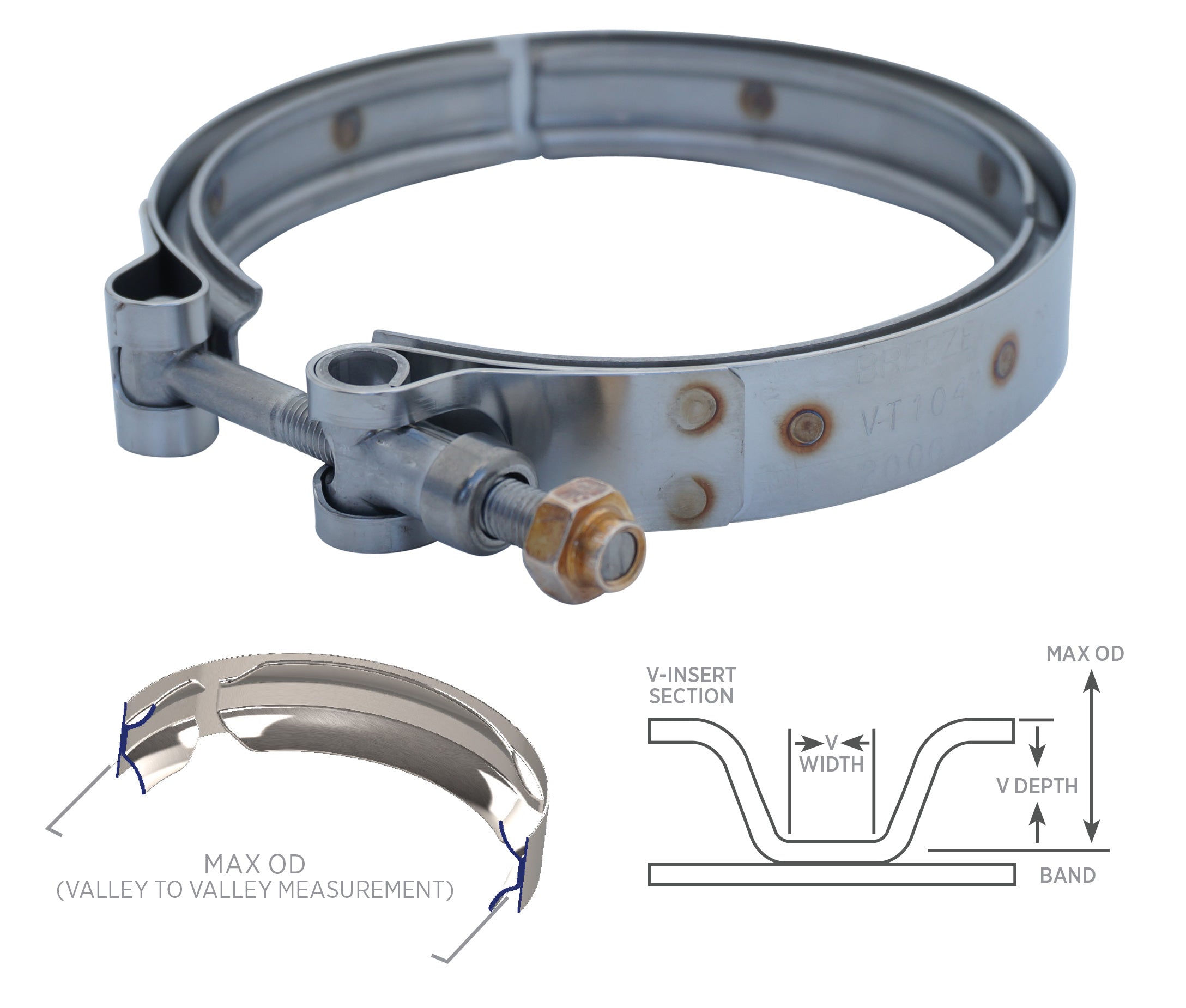

Stainless steel V-band clamp for various machined/lipped flange and rolled/lipped flange applications. Refer to second image for details on how to measure critical dimensions.

  • Typical Application: Detroit Diesel 8-2N
  • Maximum OD: 4.06" (108mm)
  • Valley Width: 6mm
  • Valley Depth: 7mm
  • Tube Size Guide: 3½" (89mm)
  • OEM:
  • Cross References: OEM: RG Ray 10302. Ford EOHT5A281-BA, EOHZ5A231B. DDC/GMC 2069773 1980-90 Med. Duty Truck/Bus W/8.2LNA. Aftermarket: AP 9611. Clamps, INC VBC-4070. Donaldson J009611. Dynaflex 41-338S. Ex Air/Big Rig 88-326. Nelson 89508K. Riker UV355. Stemco 250-0001 or 250-0006. Walker 35495. Shuttleworth 320009.
